Inspirational Glass Technology
Rigmah® Glass Coporation

Rigmah®-C

Rigmah®-Ctransparent nano color-coated glass

Rigmah®-C semiconductor/LCD process technology

INK
  • Nano-size particle Dispersion
  • Nano-size particle Dispersion (Nano-size particle Dispersion)
    • Dispersion of organic materials, inorganic materials, and oxidized materials
    • Long-term storage stability
  • Excellent color and product reliability
  • Excellent color and product reliability
    • Natural color
    • Expression of various colors through toning technology
    • High coating hardness (6H or higher)
Coating
  • Coating Image

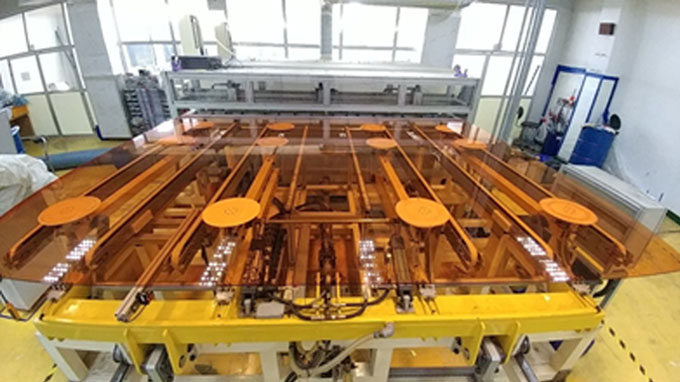

  • 9.5 generation slit coater system: Application of cutting-edge display technology
    • Large area (2,438 X 3,048 mm)
    • Thin coating (1-3um): Fast processing time and precision control
    • 100 nm coating thickness deviation
Colored Glass

Rigmah®-C transparent nano color-coated glass

Process Loading Cleaning Coating Curing Cooling Inspection Un.Loading
Capa. 1 day, 3 persons, 8 hours (1 shift) = 1 sheet of 2,438*3,048mm every 6 minutes = 2.4*3.0*10*8=576m2
Usage Automatic glass
transport system		 Glass surface
cleaning system		 Glass thin
coating system		 Coating surface
hardening system		 Hot glass
cooling system		 Coating thickness
measurement system		 Automatic glass
stacking system
Hours 2Minutes 2~3Minutes 2~3Minutes 5Minutes 2~3Minutes 1Minutes 2Minutes

Rigmah®-C production specifications

Product Name Thickness Maximum Size
Rigmah®- C 5mm 2,438 X 3,048mm

LIGHT AND SOLAR DATA

Color name Code LIGHT SOLAR
Tv(%) Rv(%) Av(%) Tv(%) Rv(%) Av(%) SHGC
CORALRED RO100-100 80.8 5.9 5.8 81.2 6.3 6.2 0.748
GREEN GO100-100 82.0 6.5 6.5 82.8 6.5 6.4 0.731
BLUE BO100-100 47.3 5.6 5.1 59.6 6.3 5.9 0.661
YELLOW YO100-100 77.3 5.6 5.1 79.6 6.3 5.9 0.766
BLACK KO100-100 49.0 6.5 6.4 57.3 6.3 6.1 0.587
VIOLET RB70-100 79.8 6.5 6.4 80.4 6.5 6.3 0.853
ORANGE RY55-100 81.0 6.4 6.4 81.8 6.6 6.5 0.861
CYAN BG50-100 68.9 6.0 5.9 62.2 6.3 6.3 0.731
YELLOW GREEN YG50-100 80.5 6.3 6.0 80.8 6.3 6.2 0.853
NAVY RB50-100 58.9 6.0 5.9 62.2 6.3 6.3 0.731

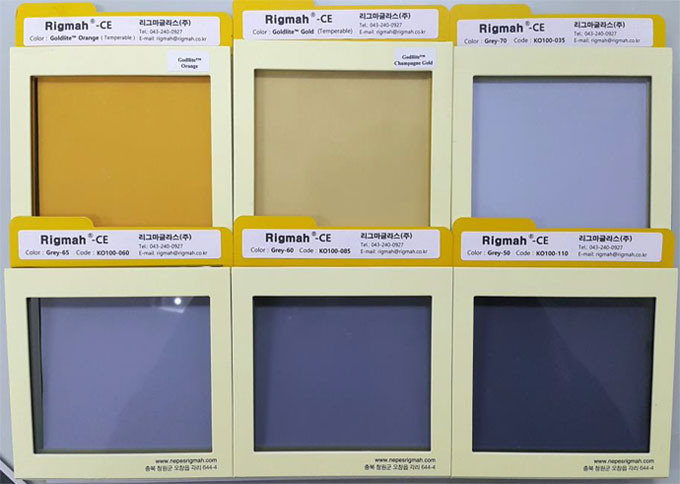

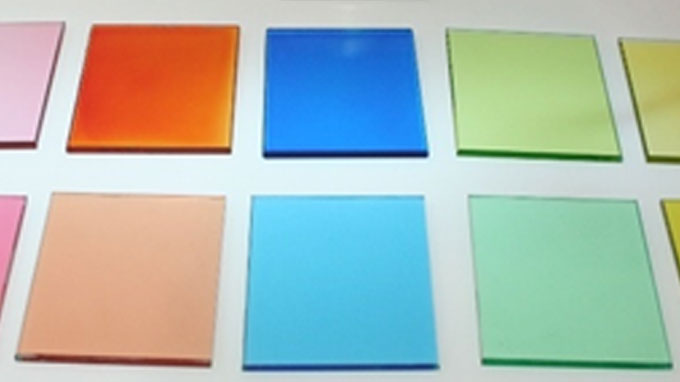

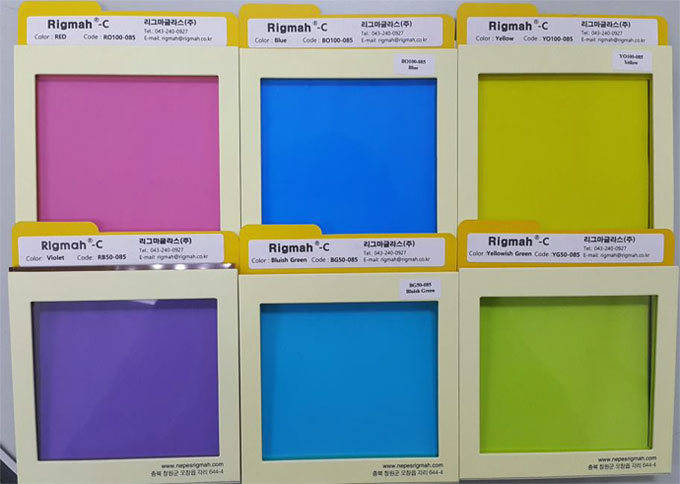

Sample Photo

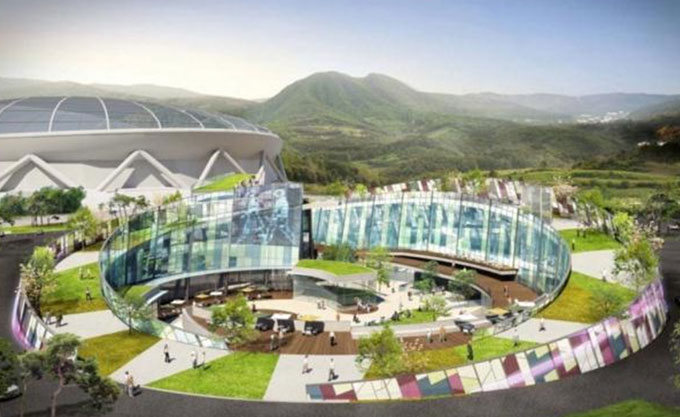

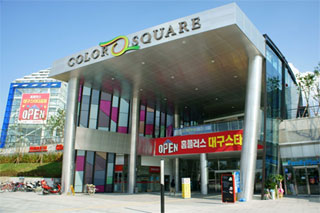

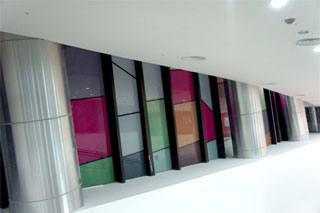

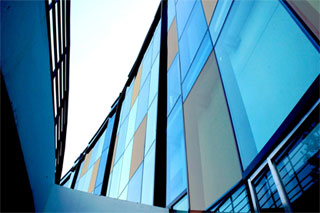

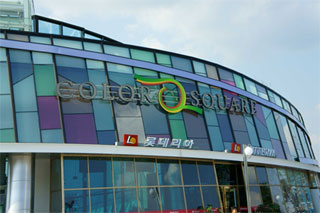

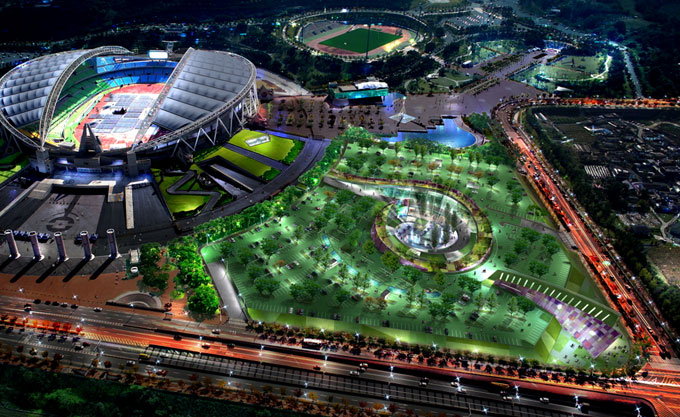

Underground area development plan for Daegu Worldcup Stadium

22 mm semi-transparent laminated multi-layered glass
glass type performance
6C + 6A + 10RL(F) Visible light Transmittance(%) 40
Visible light Reflectance(%) 8
U-Value(W/m2K) 3.0
Shading Coefficient 0.6

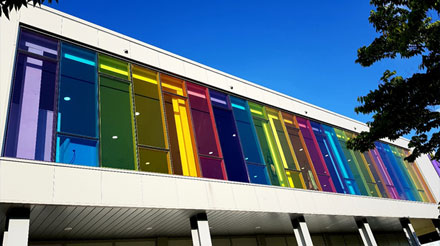

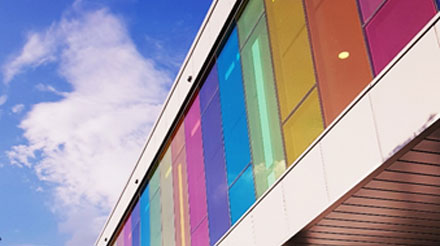

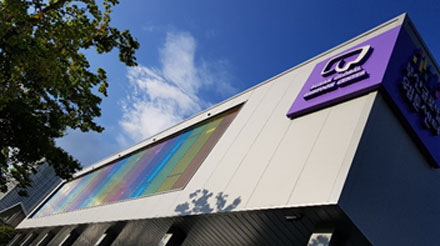

Samsung Blue Project(Glass specification for domestic and global Samsung Mobile Stores spec.-in since 2015)

22 mm transparent color heat-blocking multi-layered glass
glass type performance
6LE + 12AR + 5RCE Visible light Transmittance(%) 60
Visible light Reflectance(%) 8
U-Value(W/m2K) 2.7
Shading Coefficient 0.5

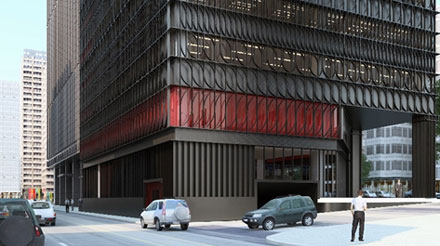

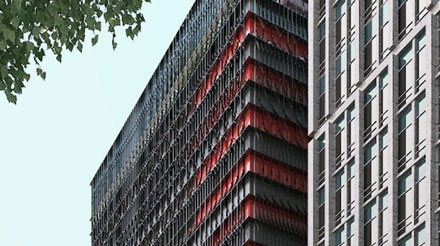

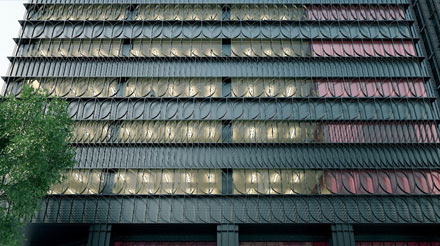

Example: Heungkuk Life Insurance Building in Busan

24 mm transparent color heat-blocking multi-layered glass
glass type performance
6LE + 12AR + 6RCE Visible light Transmittance(%) 60
Visible light Reflectance(%) 8
U-Value(W/m2K) 2.7
Shading Coefficient 0.5

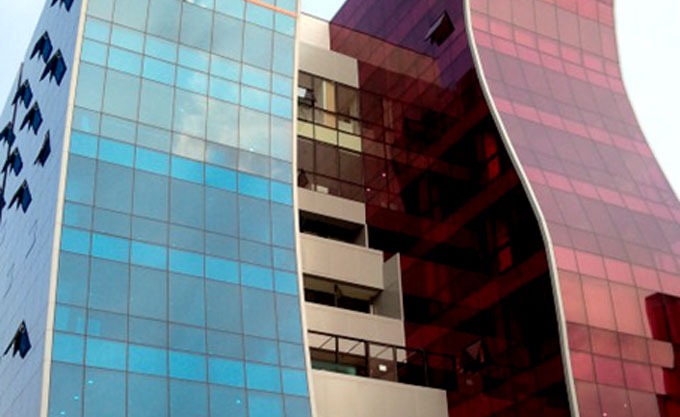

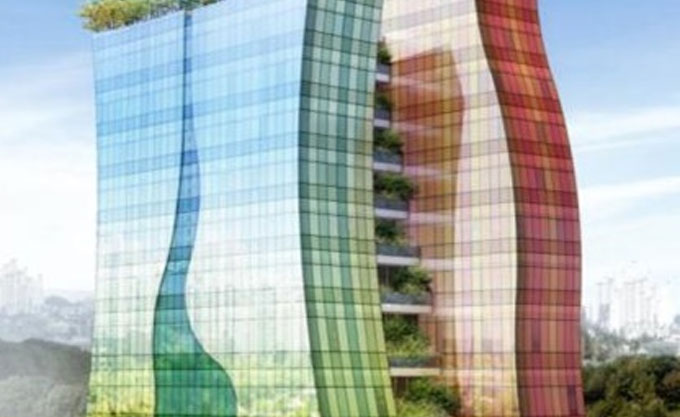

Mokpo Medical Center

24 mm transparent color heat-blocking multi-layered glass
glass type performance
6RCE + 12AR + 6C Visible light Transmittance(%) 45
Visible light Reflectance(%) 8
U-Value(W/m2K) 2.7
Shading Coefficient 0.3

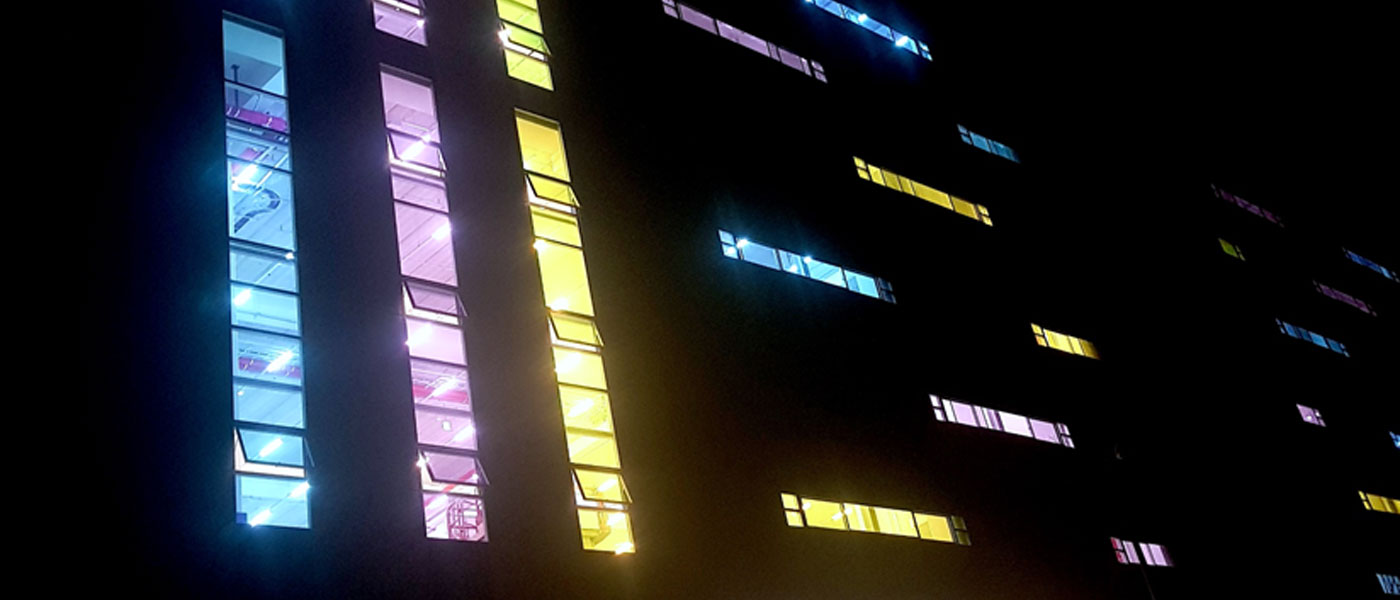

F&F Logistics Center in Icheon

22 mm transparent color dual layered glass
glass type performance
5RC + 12AR + 5C Visible light Transmittance(%) 45
Visible light Reflectance(%) 8
U-Value(W/m2K) 2.8
Shading Coefficient 0.5

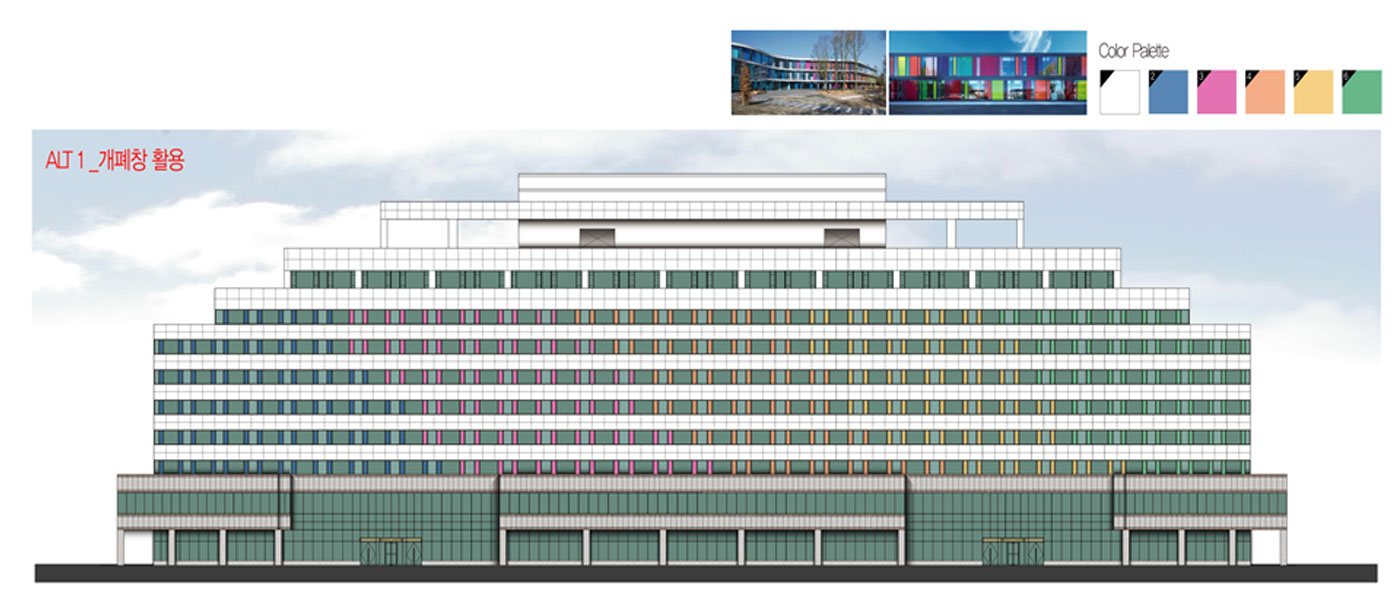

Remodeling of external glass for The K Hotel in Gyeongju(constructed in March 2018)

22 mm transparent color dual layered glass
glass type performance
6LE + 12AR + 5RC Visible light Transmittance(%) 55~68
Visible light Reflectance(%) 7.6
U-Value(W/m2K) 1.5
Shading Coefficient 0.6~0.7
